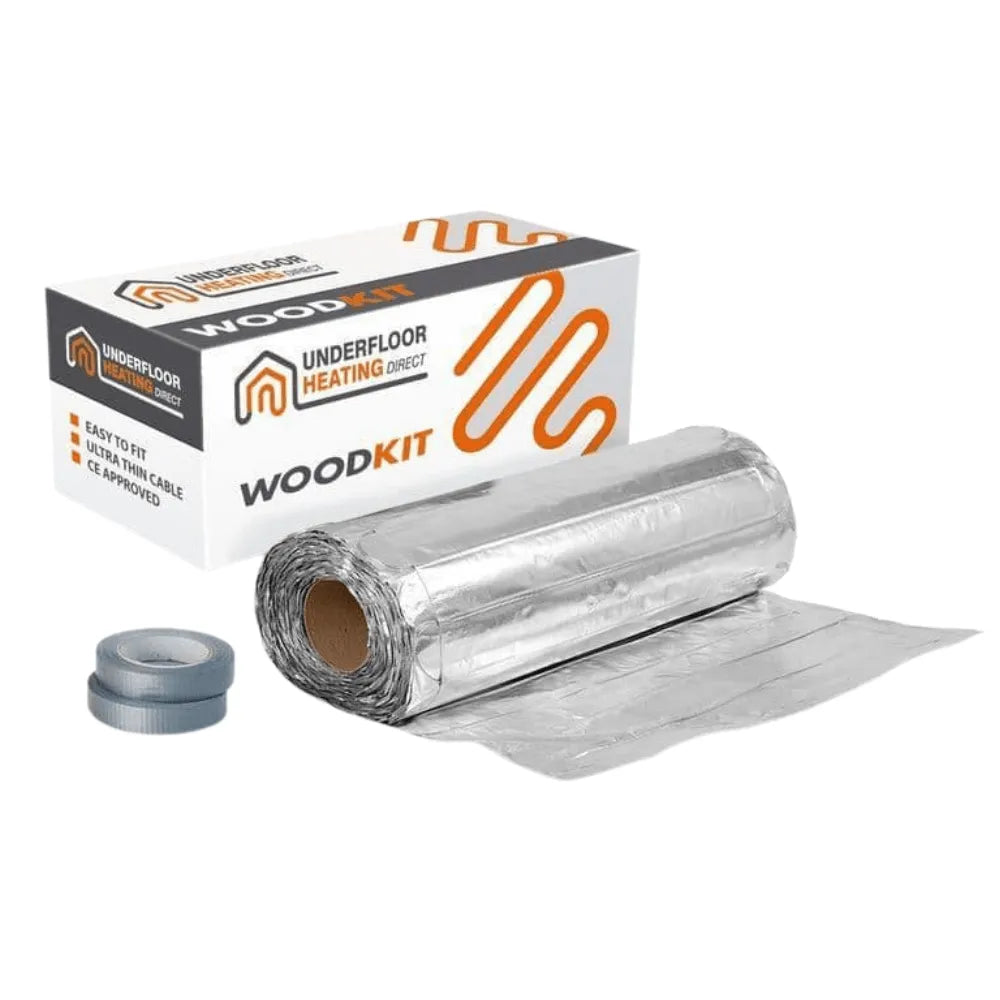

Foil Underfloor Heating Mat (Wood, Vinyl & Carpet)

Introducing the Foil Underfloor Heating Mat, the ideal solution for achieving comfortable and efficient heating for your wooden, vinyl and carpet floors. This innovative product is specifically designed to provide consistent and controllable warmth for a variety of flooring types, including engineered boards, laminate, and hardwood.

The Foil Underfloor Heating Mat is easy to install and compatible with most types of floating floors, ensuring a quick and hassle-free installation process. It features a high-quality heating foil that provides reliable and even heat distribution throughout any floor.

Upgrade your home's heating system with the Foil Underfloor Heating Mat and experience comfort and energy efficiency.

These mats MUST be installed in conjunction with ProFoam™ or XPS Insulation. When installing carpet/vinyl flooring, Heat-Pak® Dual Overlay must also be used.

When installing, please ensure that the carpet and underlay combined tog value does not exceed 2.0. Note that in most cases, underfloor heating cannot be used as the primary heat source when carpet is laid.

Your kit will contain the following items:

• Foil Underfloor Heating Mat: Immerse yourself in the unparalleled comfort of our premium heating mat, available in single or double mat configurations for areas over 12m2.
• Digital Thermostat: Take control of your comfort with our range of programmable digital thermostats, each equipped with a floor temperature probe. Experience the convenience of effortlessly adjusting your underfloor heating system.
• Adhesive Tape: Our kits include adhesive tape to ensure a secure installation, keeping the mat or cable in place for a flawless finish that exceeds expectations.

The Foil Underfloor Heating Mat is an ultra-thin electric radiant floor heating system designed primarily for use under laminate, engineered wood, glued hardwood, and other floating floors. This system offers easy installation and provides uniform heating for your laminate flooring. The special materials used in this system eliminate the problems of "Hot-Spots" or localized heating.

The system consists of fluoropolymer-insulated heating cables sandwiched between two layers of specially reinforced aluminium foil. The evenly spaced heating elements, backed by the aluminium foil, ensure even heat distribution.

The heating element is connected to a power-supply cable, which exits the laminate mat from one corner. The power lead is a flat, thin, two-core flexible cord, consisting of two insulated conductors with a metal sheath and an outer sheath.

This type of underfloor heating is available in heat outputs of 140 W/m2. It comes in predetermined lengths with a cold tail and is prefabricated and tested in a carefully controlled factory environment.

The hot and cold lead junctions are uniquely designed to make foolproof connections.

• Standards: Meets all test requirements of IEC 60335.
• Approvals: SEMKO certified
• Cost-effective: Underfloor heating provides heat where required, resulting in optimal heat utilization and minimal losses.
• Flexibility: Can be laid on any area or floor layout.
• Comfort: Close and uniform spacing of heating cables and thermostat controls to select temperature requirements provide higher comfort levels.
• DIY: Underfloor heating systems are designed to be easy to install, with clear instruction manuals and professional technical support.
• Range: A wide range of heat loads and sizes ensure suitability for all floorings.
• 10-year warranty
