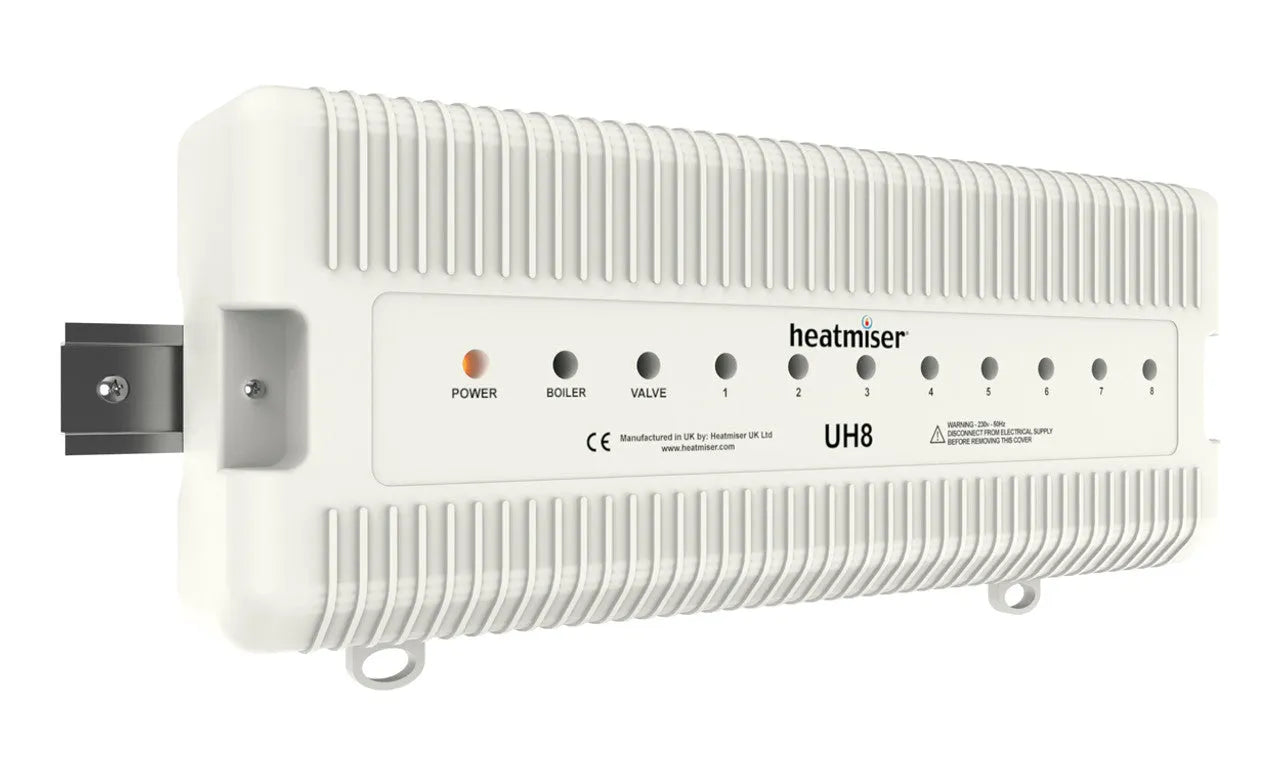

The Heatmiser UH8 Wiring Centre is a powerful and flexible solution designed to provide efficient zone control for your heating system. It seamlessly integrates with the Heatmiser TM4 4-Channel Time Clock and DS-SB Set Back Thermostat, while also being compatible with any 230V room thermostat.
With 8-zone control, customisable time channels, and independent radiator zone options, the UH8 is ideal for both underfloor heating and traditional radiator systems, ensuring precise temperature management throughout your home or commercial space.
Key Features- 8-Zone Control – The UH8 allows independent control of up to eight heating zones, offering superior comfort and energy efficiency.
- Dual Heating Channels – Features two heating channels, each configurable to follow a specific time schedule, ensuring efficient heating management.
- Additional Time Channels – Two extra time channel connections allow for hot water control or integration with auxiliary devices, adding to the system’s versatility.
- Volt-Free Boiler Connection – Includes a volt-free output for the boiler, ensuring compatibility with nearly all boiler types for seamless system integration.
- Independent Radiator Zone – A slide switch lets you configure Zone 8 for radiator control. When activated, it operates separately from the underfloor heating system, preventing unnecessary activation of pumps and valves.
- LED Output Indication – LED status indicators provide a clear visual display of the boiler, pump, valve, and zone activity, making troubleshooting and system monitoring effortless.
- DIN Rail Mounting – Designed for secure and organised installation, ensuring a professional and tidy setup.
Feature | Details |
---|---|
Power Supply | 230V AC |
Relay Load (Max) | 3A |
Total Load (Max) | 5A |
IP Protection Rating | IP20 |

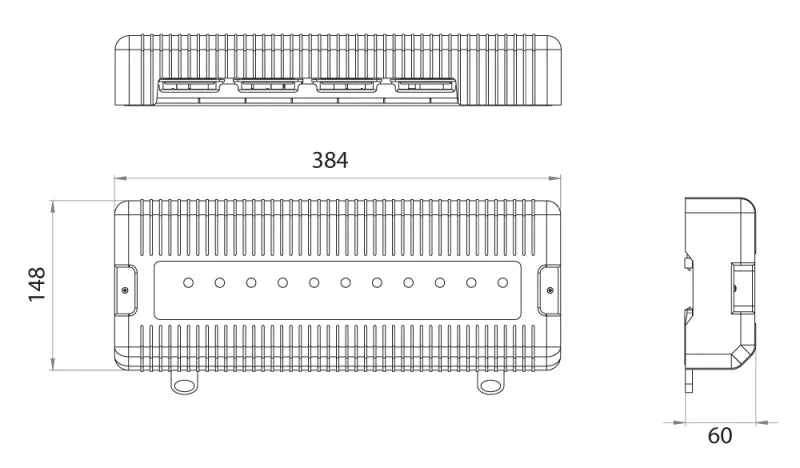

Dimensions (L x H x D) | 384 x 148 x 60 mm |
Number of Heating Zones | 8 |
The Heatmiser UH8 Wiring Centre is a versatile, reliable, and user-friendly solution that delivers enhanced control and efficiency for your heating system. Whether you're managing underfloor heating, radiators, or hot water, the UH8 ensures seamless operation and total convenience.
✔ Compatible with:- Heatmiser TM4 4-Channel Time Clock
- Heatmiser DS-SB Set Back Thermostat
- Other 230V Room Thermostats
Upgrade your heating control with the Heatmiser UH8 – the perfect solution for modern, energy-efficient homes and commercial spaces.
